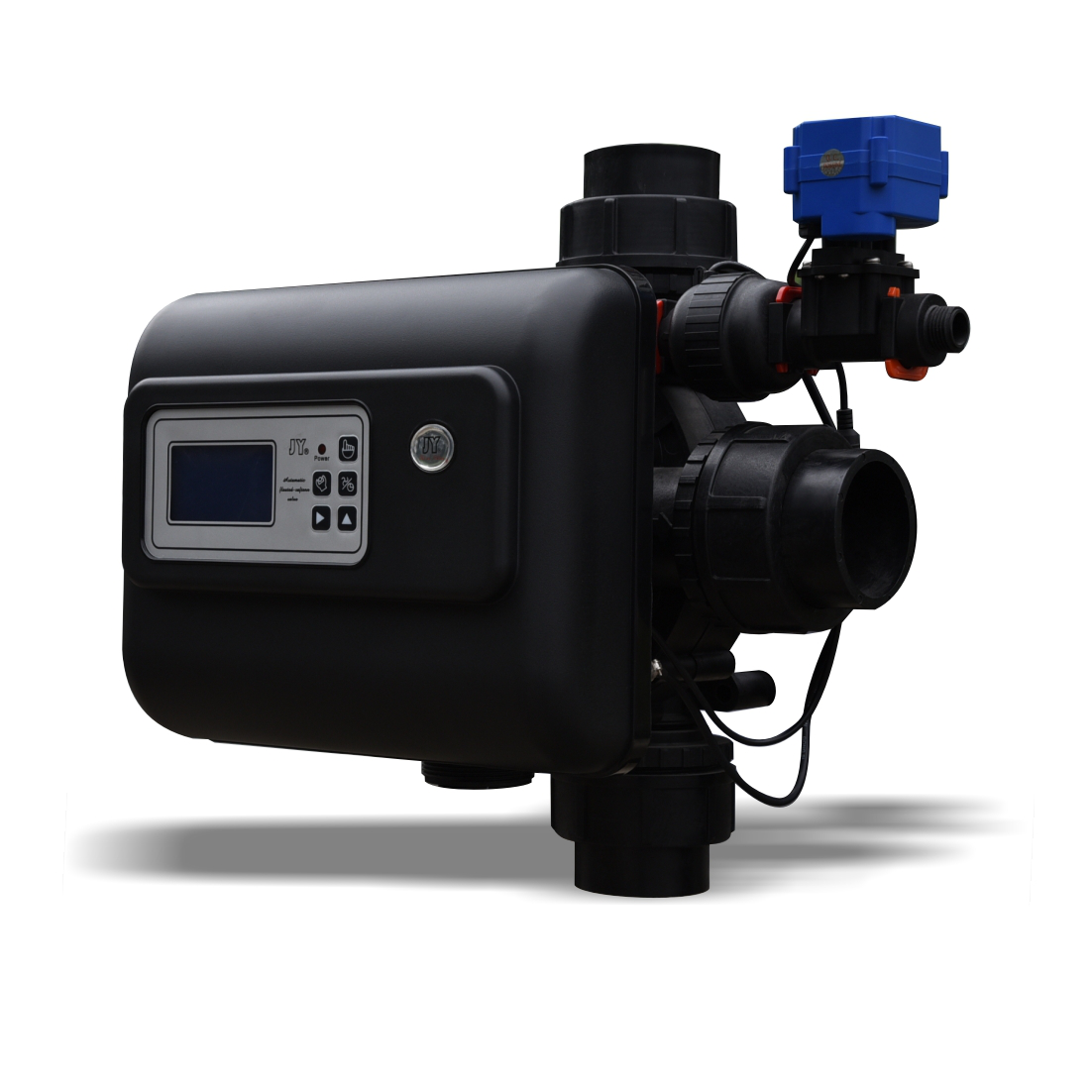

GR Large Series Fixed Bed Softening Valve

GR20\40\50\20T\40T series up flow regeneration fixed bed large valve series, water production range is 15T/ h-70t /h, the inlet flow meter is used to set the cycle of water production, slow backwash water and wash water, and the brine flow meter and the brine electric valve are used to specifically measure brine absorption and salt tank water supply.In the flow mode, the internal flow transducer realizes the switch of all stations as long as the amount of brine,the amount of slow washing water and the amount of washing water is set according to the volume (liter) of the swap tank. After the period of softening water amount (ton) is set according to the hardness of the raw water, each station decreases to “0” according to the set value, and stops decreasing and maintains when the water is out of service or no water.

GR Large Series Fixed bed softening valve Features:

1. Full flow control, especially the salt absorption flow control in the regeneration process, saving salt and water, saving energy and reducing consumption.
2. Keyboard lock function to prevent misoperation.
3. Power failure parameter protection, power failure memory and water failure memory.
4. The end face ceramic seal with high flatness and corrosion resistance is adopted, which has good sealing effect and long service life.
5. The number of repeated flushing can be set.
6. Optimized design of valve body and flow channel, with greater water production.
7. Multiple interlocking and multi-mode output control can be used to control the feed water pump, the water inlet solenoid valve, and realize the parallel interlocking of double valves, one for use and one for backup.
8. The 485 interface can be extended to realize remote control.

GR Large Series Fixed Bed Softening Valve Parameter Setting

GR Large Parameter Setting

GR Large Series Fixed Bed Softening Valve Flow process

Gr20Flow process
GR Large Series Fixed Bed Softening Valve Selection
GR Large data
