DR-1 Fixed Bed Up Flow Regenerate Softener Valve

Meter, time clock dual mode. In flow mode, the internal flow transmitter realizes the function of setting water volume as required. After setting regeneration water volume and cleaning water volume of exchange tank, the period of softening water amount (ton) according to the hardness of the raw water, each station decreases to “0” according to the set value, and stops decreasing and maintains when the water is out of service or no water.



DR-1 softener valve Features:

1. Full flow control, especially the salt absorption flow control in the regeneration process, saving salt and water, saving energy and reducing consumption.
2. Keyboard lock function to prevent misoperation.
3. Power failure parameter protection, power failure memory and water failure memory.
4. The end face ceramic seal with high flatness and corrosion resistance is adopted, which has good sealing effect and long service life.
5. The number of repeated flushing can be set.
6. Optimized design of valve body and flow channel, with greater water production.
7. Multiple interlocking and multi-mode output control can be used to control the feed water pump, the water inlet solenoid valve, and realize the parallel interlocking of double valves, one for use and one for backup.
8. The 485 interface can be extended to realize remote control.

DR-1 Softener Valve Parameter Setting

Softener Valve Parameter Setting

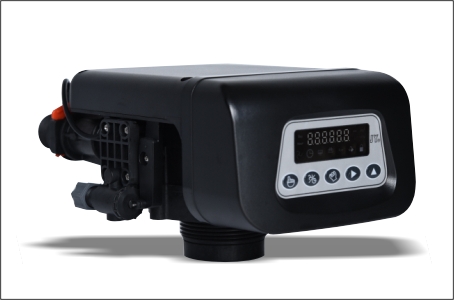

DR-1 Softener Valve Control Panel

Control Panel with LED Screen

Water Softener Valve
High Quality Water Valve Sand Filter


Control Panel with LED Screen

Water Softener Valve
High Quality Water Valve control Filter
DR-1 Softener Valve Selection
Water Softener Valve
